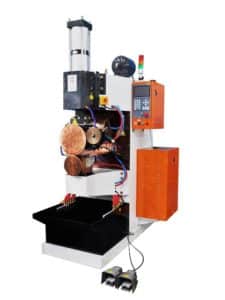

Heron Seam Welders provide a quality solution for most common applications. See the table below for standard model information. For more information and for more customized solutions contact T. J. Snow.
Features :
220 KVA to 880 KVA
Short Circuit Current from 20 KA to 60 KA
One stroke cylinder
Foot Switch
Options :
Double Stroke Cylinder
Servo Electric Cylinder
Light Curtain
Water Chiller
FB-200-C**
FN-50-C**
FN-80-C**
FN-100-C**
FN-150-C**
FN-200-C**
FB-200-L**
FN-50-L**
FN-80-L**
FN-100-L**
FN-150-L**
Rated Capacity
kVA
MFDC 200
AC 50
AC 80
AC 100
AC 150
AC 200
MFDC 200
AC 50
AC 80
AC 100
AC 150
Power Supply
V / Dia. / Hz
480 / 3 / 60
mAX. Primary Current
A
136
93
149
186
279
372
136
93
149
186
279
Primary Cable
MM2
50
50
50
120
120
120
50
50
50
120
120
Max. Short
Circuit Current
KA
35.3
14.5
19.43
20.4
27.5
26.5
35.3
14.5
19.43
20.4
27.5
Rated Duty
Cycle
%
10
30
30
30
30
30
10
30
30
30
30
Secondary
Empty Voltage
V
10
5.4 / 4.5
5.8 / 6.7
6.7 / 5.8
8.6 / 8
13.5 / 10.5
10
5.4 / 4.5
5.8 / 6.7
6.7 / 5.8
8.6 / 8
Welding Cylinder
Size
Dia * L
(inches)
6.3 * 3.15
3.94 * 2.36
4.92 * 3.14
6.3 * 3.15
6.3 * 3.15
6.3 * 3.15
6.3 * 3.15
3.94 * 2.36
4.92 * 3.14
6.3 * 3.15
6.3 * 3.15
Max. Working
Pressure @ 0.5MPa
lbf
2248
877
1349
2248
2248
2248
2248
877
1349
2248
2248
Compressed Air
Pressure
MPa
0.6 - 0.7
Cooling Water
Consumption
gal/min
7.26
3.96
4.4
4.4
5.28
5.28
7.26
3.96
4.4
4.4
5.28
Compressed Air
Consumption
gal/time
1.28
0.5
0.78
1.28
1.28
1.28
1.28
0.5
0.78
1.28
1.28
Throat Depth
inch
21
24.4
26.14
27
27
27
45.16
45.16
45.16
45.16
45.16
Arm Gap
inch
9.72
8.27
8.2
9.76
9.76
9.76
4.53
4.53
4.53
4.53
4.53
Electrode Size
Dia. * inch
330 * 10
200 * 13
200 * 12
250 * 12
250 * 12
250 * 12
250 * 20
250 * 20
250 * 20
250 * 20
250 * 20
Dimension
H (in)
102.95
68.78
64.84
83.27
83.27
83.27
93.23
93.23
93.23
93.23
93.23
L (in)
73.94
55.12
66.5
64.25
64.25
64.25
89.53
89.53
89.53
89.53
89.53
W (in)
46.5
36.42
40.35
31.61
31.61
31.61
49.72
49.72
49.72
49.72
49.72
