42.0.01WE OFFER ONE OF THE BROADEST PRODUCT LINES AVAILABLE TODAY Tuffaloy supplies a broad range of weld force gauges, available with accuracies from 0.5% for Digital-Electronic gauges; to 2% accuracy for the Digital-Hydraulic which has a digital output driven by hydraulics; to our Standard Hydraulic models with 2%-3% accuracy. All are available in English and metric readouts.
Our Digital-Electronic gauge supplies the highest accuracy (0.5% for 95% of the gauges range). The gauge has large LCD readouts with peak-hold capabilities. All functions are electronic which prevents variations caused by flexing.

The Digital-Hydraulic delivers better accuracy than standard hydraulic gauges but at a lower price than all-digital models. The unit of measure is field selectable between pounds, kilograms and newtons. The peak-hold feature allows for reading variable forces, which are common in resistance welding machinery. Gauges maintain an accuracy of 2% for 30% to 90% of the gauge’s range.

Tuffaloy’s Standard Hydraulic gauges are the low cost method for obtaining general force measurements. These gauges are available in a standard block style, with extensions. Sizes range from 600 lb up to 10 tons with accuracy of 2% at the mean and 3% outside of mean for 70% of the gauge’s range.

DescriptionFeaturesMax ReadingIncremementOpening Extension LengthItem #
DLC Series Gauge
dlc_forcegauge
  • 0.50% Accuracy

  • Less than 500ms response time

  • Peak hold feature

  • Selectable units: Lbs, Kg, N, KN

  • NIST Traceable certification
  • 3,000 lbs
    1,363Kg
    13,344 N
    13.34 KN
    1lb
    1Kg
    1 N
    1 KN
    9/16"
    (1.43 cm)
    -601-3000DLC
    5,000 lbs
    2,272 Kg
    22,241 N
    22.24 KN
    1lb
    1Kg
    1 N
    1 KN
    9/16"
    (1.43 cm)
    -601-5000DLC
    Digital- Electronic Weld Probe
    dig-elec_force_gauge_small
  • Analog output

  • Auto shut-off

  • No-weld setting not required

  • Accuracy 0.5% over full rating

  • Traceable certification
  • 0-1,000 lbs
    0-454 Kg
    1lb
    1Kg
    1/4"10"601-8010MD
    601-8045MD-KG
    0-3,000 lbs
    0-1,133 Kg
    1lb
    1Kg
    1/2"10"601-8300MD
    601-8136MD-KG
    0-5,000 lbs
    0-2,270 Kg
    1lb
    1Kg
    1.1"10"601-8010MD
    601-8045MD-KG
    0-10,000 lbs
    0-4535 Kg
    1lb
    1Kg
    1.1"10"601-8010MD
    601-8045MD-KG

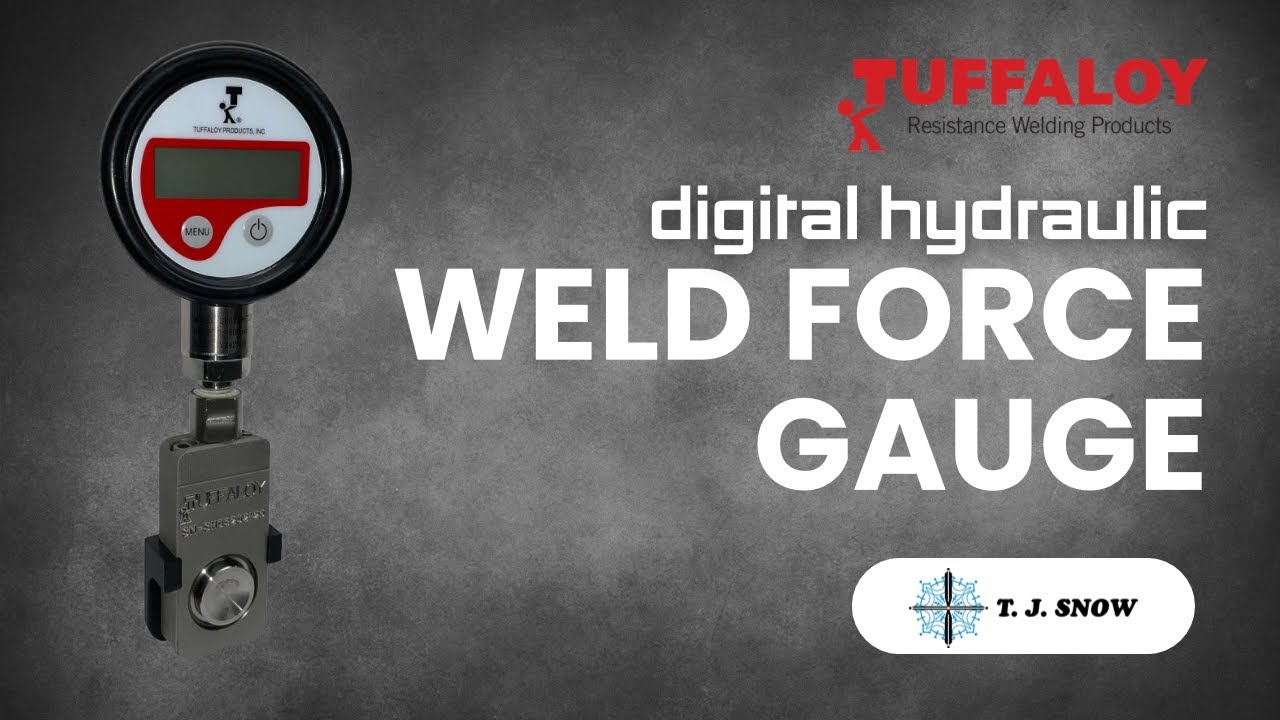

    Digital-Hydraulic
    dig-hyd-force_g_small
  • Accuracy 2%

  • NIST traceable certification

  • Field selectable units between:
    -Pounds
    -Kilograms
    -Newtons
  • 0-3,000 lbs
    0-1,360 Kg
    0-13,300 N
    1lb
    1Kg
    1 N
    3/4"-601-3000D
    0-5,000 lbs
    0-2,270 Kg
    0-22,200 N
    1lb
    1Kg
    1 N
    3/4"-601-5000D
    0-10,000 lbs
    0-4,540 Kg
    0-44,500 N
    1lb
    1Kg
    1 N
    3/4"-601-9999D
    0-3,000 lbs
    0-1,360 Kg
    0-13,300 N
    1lb
    1Kg
    1 N
    3/4"12"601-3000D
    Standard- Hydraulic
    st_hydro_long_small
  • Accuracy 3%
  • 0-600 lbs
    0-1,000 lbs
    0-2,000 lbs
    0-2,000 lbs
    0-3,000 lbs
    0-3,000 lbs
    0-5,000 lbs
    0-6,000 lbs
    0-6,000 lbs
    0-10,000 lbs
    0-5,000 Kg
    10 lb
    20 lb
    50 lb
    50 lb
    20 lb
    20lb
    100 lb
    50lb
    50lb
    100 lb
    50 Kg
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    3/4"
    -
    -
    -
    12"
    -
    12"
    -
    -
    18"
    -
    -
    601-8006
    601-8010
    601-8020
    601-8020-12
    601-8030
    601-8030-12
    601-5000
    601-6000
    601-6000-18
    601-8100
    601-8101
    high_cap_hydro_small* Metric equivalent available
    0-20,000 lbs50 lb1-3/4"-601-20000
    NOTE:  Discontinued or obsolete force gauges
    • 601-4000D
    • 601-3000D
    • 601-12.5T
    • 601-25T
    • 601-50T
    • 601-8300SD
    • 601-8010SD
